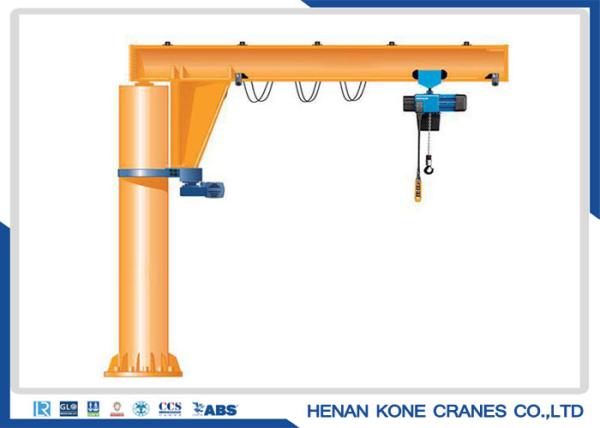

Fixed Column Electric Jib Crane , 5T Manual Rotating Jib Crane

HENAN KONE CRANES CO.,LTD

Fixed Column Electric Jib Crane , 5T Manual Rotating Jib Crane

Brand Name : KN

Model Number : BZ

Certification : BV ISO

Place of Origin : HENAN,CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs

Delivery Time : 30 work,days

Packaging Details : Wooden box

Warranty : 2 years

After-sales Service Provided : Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Lifting mechanism : Elctrical Hoist

Rated Loading Capacity : 5T

Max. Lifting Height : 20m

Marketing Type : Ordinary Product

Product Name : Fix column free standing 5t engine lift jib crane

Contact Now

Fixed Column Slewing Manual Rotate 5 Ton Lifting Jib Crane Price

Widely used in workshop, warehouse, dock, yard, storage.

Span Length: 3~12m.

Lifting Capacity: 0.5~10 tons.

Many kinds of Jib cranes types

jib crane shows its superiority in short-range, intensive lifting occasions;

jib crane is widely used in workshop, warehouse, docks and other fixed place.

Electric parts and electric hoist are packed by strong plywood crate, crane steel structures packaged in plastic woven cloth.

Name fixed floor mounted electric jib crane
Beam H type beam (1-7meter )
hoist CD type electric hoist ( wire rope type )
Load capacity 1-3 tons
lifting height 5-7 meter
install place floor
Contact supplier get Latest price

Features:

(1) Uses wide-flange beam or I-beam for the boom and a wide-flange beam for the column.

(2) The top assembly has self-aligning spherical bearings.

(3) The bottom assembly has bronze bearings and bronze thrust washers.

(4) Both bearing assemblies are provided with grease fittings for lubrication to aid rotation.

Options:

(1) Festoon (or electric power lines)

(2) Motorized rotation.

(3) Taglines.

(4) Special control enclosures (to match your environment).

(5) Specialty paint finishes or hot dip galvanizing

No
Item
Data
1
Lift capacity
500kg-10ton
2
Lift height
1-12m
3
Arm length
1-12m
4
Hoist
wire rope hoist and chain hoist , manual hoist
5
Slewing
360 Degrees
6
Slewing motor
electric motor or manual
7
Power supply
Local power
8
Installation video
Provide

FAQ

Q. What's the information should I provide when inquiry?
More details or drawings, better.
Lift capacity ?

span ?

lift height ?

power sourceor other specials you give us will be more appreciated ?

Q. What makes you different from other manufacturers ?

We believe our service department has the experience and knowledge to safely service your overhead cranes,gantry cranes,port crane and hoists .We have trained service technicians who will be able to get your material handling equipment up and running ,and have been providing our customer’s an effective service solution .
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q: The space of my workshop is limited, can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
